ICP/EcoTemp R-454b 5.0 Ton 15.5 SEER2 Straight Cool-A/C Split System (W5A5S60AKAWA+WCHL605BD)
THIS IS NOT A HEAT PUMP!!

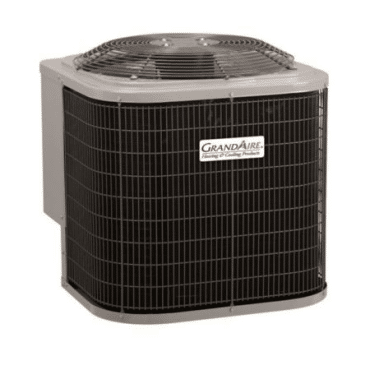

About the W5A5S60AKAWA:
| Nominal Capacities | Compressor | Motor | Refrigerant | Electrical Data | Weight | Dimensions | |||||||||||||
| Cooling BTU/h | Heating BTU/h | Decibels | Stage | Type | Type | Horsepower | RPM | Liquid | Suction | Charge (lbs.) | Volts/Phase (60Hz) | M.C.A | M.O.P. | Min/Max Volts | Net (lbs.) | Gross (lbs.) | W” | D” | H” |
| 60,000 | – | 75 | Single | Scroll | PSC | 1/4 | 1100 | 3/8 | 7/8 | 7.9 | 208/230-1 |
31.1 |
50 | 197/253 | 195 | 215 | 31.25 | 31.25 | 38.5 |
Â
About the WCHL605BD:
| Nominal Rating | Blower | Refrigerant | Electrical Data | Filter | Weight & Dimensions | ||||||||||
| Cooling BTU/h | Nominal Ton | Type | Horsepower | Full Load Amps | Liquid | Suction | Voltage/Phaze | M.C.A | M.O.P. | Min/Max Volts | Size (in.) | Weight (lbs.) | W” | D” | H” |
| 60,000 | 5.0 | MS-ECM | 3/4 | 6.1 | 3/8 | 7/8 | 208/240-1 | 7.6 | 15 | 197/253 | 24 x 20 | 211 | 24.5 | 22 | 52.95 |
Specifications
- Weight: 426 lb
